Z3‑VN (Violin Booster)
A tape booster and tone shaper designed to saturate violin pickups with tape-style warmth and dynamic response.
Overview
Z3 — Violin Tone Shaper and Booster
The Z3 is a compact, dedicated tonal enhancement unit for bowed string instruments with piezo pickups. Its architecture combines precision gain control with musical, tape-style harmonic coloration — Designed to unlock the full potential of your piezo pickup.
It includes high-impedance preamps optimized for both high- and low-capacitance piezo systems, along with a dedicated line input for active instruments or external effects. Core controls — Boost, Tone, and Master Volume — provide a refined balance of saturation and clarity.
The Z3 features a dedicated five-band EQ for precise tone-shaping that extends beyond what's typically available in instrument boosters. Each band is tuned to musically relevant frequency ranges for bowed strings, allowing precise control over body warmth, midrange focus, and high-end attack.
The Chopper section introduces two tonal modes: Soft, maintaining natural articulation, and Crunch, emphasizing harmonic texture and percussive attack.
With the Interface Lock system, players can store and recall knob settings instantly during a performance, while Edit mode allows selective unlocking of individual knobs for on-the-fly adjustments.
The unit supports both true bypass and digital bypass (for consistent impedance handling). The Z3 maintains sub-1 ms input-to-output latency and transparent signal integrity, finely optimized for violins.
Every circuit is purpose-tuned for professional violinists seeking refined coloration, controlled warmth, and reliable stage behavior — not just amplification.
Frequently Asked Questions
1. General Product & Concept
What is the impulse9 Z3-VN Violin Booster?
The Z3-VN is a dedicated tone shaper and booster specifically engineered for violin instruments equipped with piezo pickups. It combines a high-quality analog preamp front end with a proprietary DSP engine (soma-AXON) providing easy to use control over your instrument behaviour.
Who is the Z3-VN designed for?
The Z3-VN is designed for violinists who use piezo-equipped violin instruments. It eliminates the guesswork involved in using guitar-focused pedals or amplifiers on violins by providing an instrument-tailored solution that understands the unique resonance and requirements of bowed strings.
What is the main difference between the Z3-VN and a standard guitar booster pedal?
The Z3-VN is purpose-built for piezo pickups and bowed instruments. It features dedicated Hi-C/Lo-C preamps optimized for high- and low-capacitance sensors, a five-band EQ tuned specifically for violin frequencies as well as character and tone control. A standard guitar pedal is designed for magnetic pickups and electric guitar amplification; the Z3-VN is engineered for transparent signal integrity and nuanced tonal coloration on violins.
What's the difference between an overdrive and a booster pedal?
In general an overdrive pedal adds gain and clipping, creating a warm, driven tone. A booster pedal primarily increases your signal level with little or no added distortion, making your instrument louder or pushing your amp or other pedals into natural overdrive.
In case of the Z3-VN we pushed the term "booster" two steps further. We gave it a five band EQ tuned for violin frequencies, and put an entire dedicated amp-sim DSP engine behind the saturation stage.
As a result you have an option to not just boost your instrument signal level, but control its response.
2. Technical Specifications & Performance
How does the Z3-VN handle different types of piezo pickups (Hi-C vs. Lo-C)?
The Z3-VN features two dedicated high-impedance piezo preamps: Hi-C and Lo-C. This allows you to select the preamp setting that perfectly matches the capacitance of your specific piezo pickup system, ensuring consistent tone, optimal signal strength, and natural instrument response regardless of your setup.
What is the latency like, and how reliable is it for live performance?
The Z3-VN features a proprietary DSP engine running at 176 kHz / 24-bit with sub-2 ms total latency. This extremely low latency ensures transparent signal integrity and reliable operation, making the unit highly dependable for real-time performance use on stage or in the studio.
What kind of tone shaping features does the Z3-VN offer?
The Z3-VN provides several powerful tonal controls:
- Five-Band EQ: Precise frequency control across violin-specific bands (tuned for body resonance, midrange focus, and high-end clarity).
- Chopper Modes (Soft & Crunch): Allows you to switch between a soft mode that maintains clean articulation and a crunch mode that aggressively boosts harmonics for percussive or intense playing.
- Tone Control & Master Volume: Refined controls to balance saturation and clarity easily.
Does the Z3-VN offer any instrument learning capabilities?
No. This system was purpose-tuned for the standard violin spectrum (electric and acoustic), and it remains a compact option derived from the Z7-VN CN1.
3. Usage & Compatibility
Can I use an acoustic violin with the Z3-VN?
Yes. As long as the instrument is equipped with a piezo pickup, you can connect your violin directly to the Z3-VN.
Is the Z3-VN plug-and-play? Does it require an external amplifier?
Yes, the Z3-VN is designed to be completely plug-and-play. It operates as a standalone unit—a dedicated tone enhancement device. You do not need a guitar amplifier or additional external effects to use the unit; it processes the signal directly from your instrument and outputs a refined signal ready for your recording or PA system.
How is the Z3-VN built for stage performance?
The Z3-VN features stage-focused ergonomics, including hardware controls, snap-memory toggle, and software lockable knobs. These features allow you to quickly access and reliably adjust your settings during a performance without needing to navigate complex menus, ensuring stable tone under pressure.

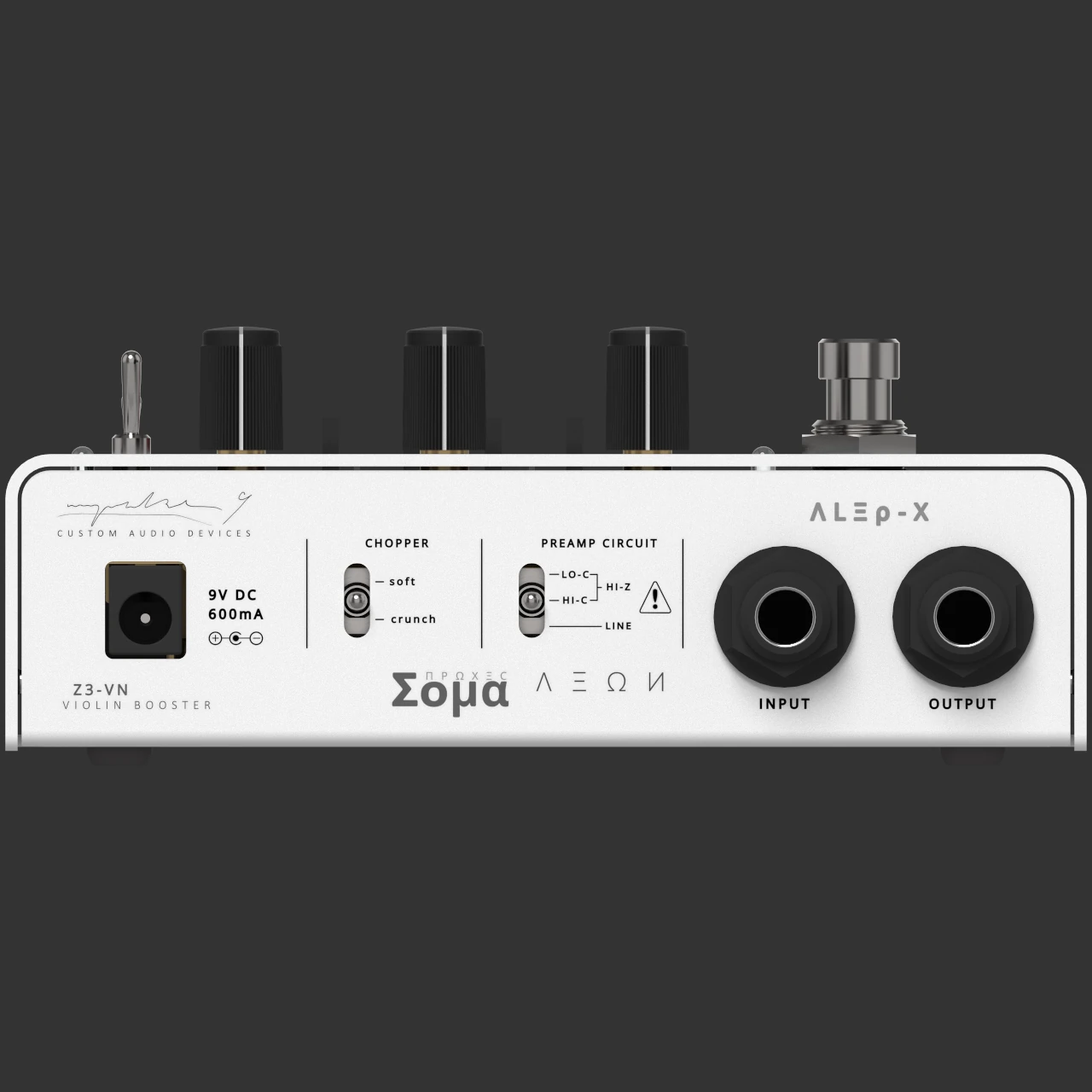

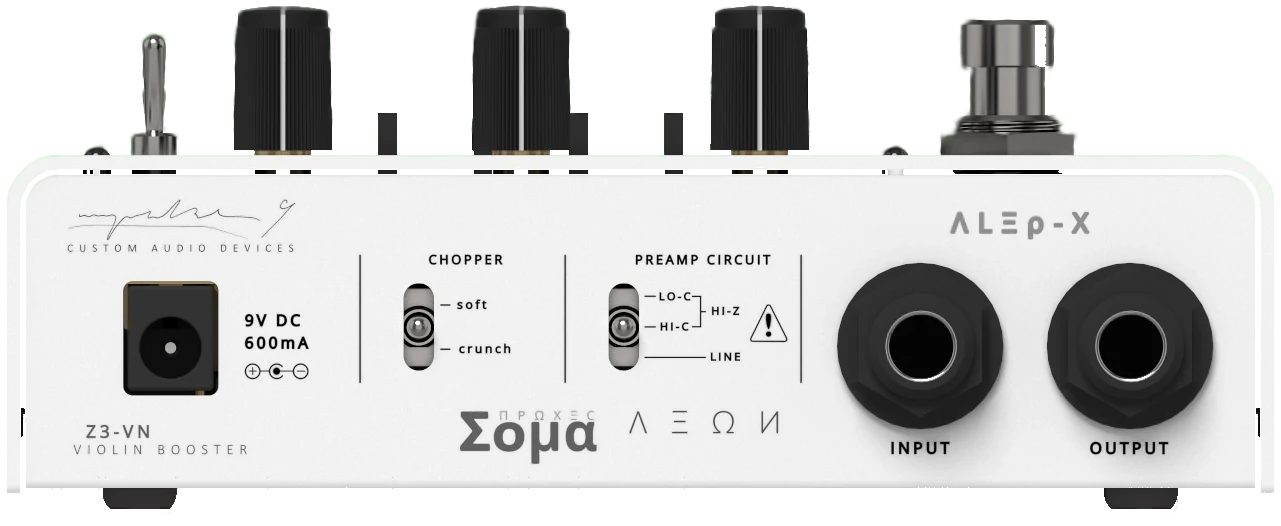

What kind of power does the unit require?
The Z3-VN requires a 9V DC power supply (center-negative) with a minimum requirement of 600 mA. A linear regulated supply is recommended for optimal performance and stability.
soma-AXON runs at 176 kHz / 24-bit with sub-1 ms latency, and is optimized for bowed instruments. Capable of learning an instrument's characteristics, its goal is not to replace an acoustic tone but to complement it — adding controlled nonlinear warmth while preserving transient detail and playability.
